This APC Smart-UPS C series is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1500VA line interactive UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 60320 C14, 8x IEC 320 C13 outlets,and2 IEC Jumpers. enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 2-year warranty, and the built-in lead-acid battery has a 1-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge APCRBC151helps restore UPS performance to the original specifications.
| APC Smart UPS T Ordering List of SMT Series Products | ||
| SUA Models | SMT Models | Model |
| SUA750ICH | SMC750I-CH | APC Smart-UPS C 750VA LCD 230V for China without Smart slot |
| SUA1000ICH | SMC1000I-CH | APC Smart-UPS C 1000VA LCD 230V for China without Smart slot |
| SUA1500ICH | SMC1500I-CH | APC Smart-UPS C 1500VA LCD 230V for China without Smart slot |
| SUA2200ICH | SMC2000I-CH | APC Smart-UPS C 2000VA LCD 230V for China without Smart slot |
| SUA3000ICH | SMC3000I-CH | APC Smart-UPS C 3000VA LCD 230V for China without Smart slot |
| SUA1000R2ICH | SMC1000I2U-CH | APC Smart-UPS C 1000VA LCD RM 2U 230V for China without Smart slot |
| SUA1500R2ICH | SMC1500I2U-CH | APC Smart-UPS C 1500VA LCD RM 2U 230V for China without Smart slot |
| SUA2200R2ICH | SMC2000I2U-CH | APC Smart-UPS C 2000VA LCD RM 2U 230V for China without Smart slot |
| SUA3000R2ICH | SMC3000I2U-CH | APC Smart-UPS C 3000VA LCD RM 2U 230V for China without Smart slot |

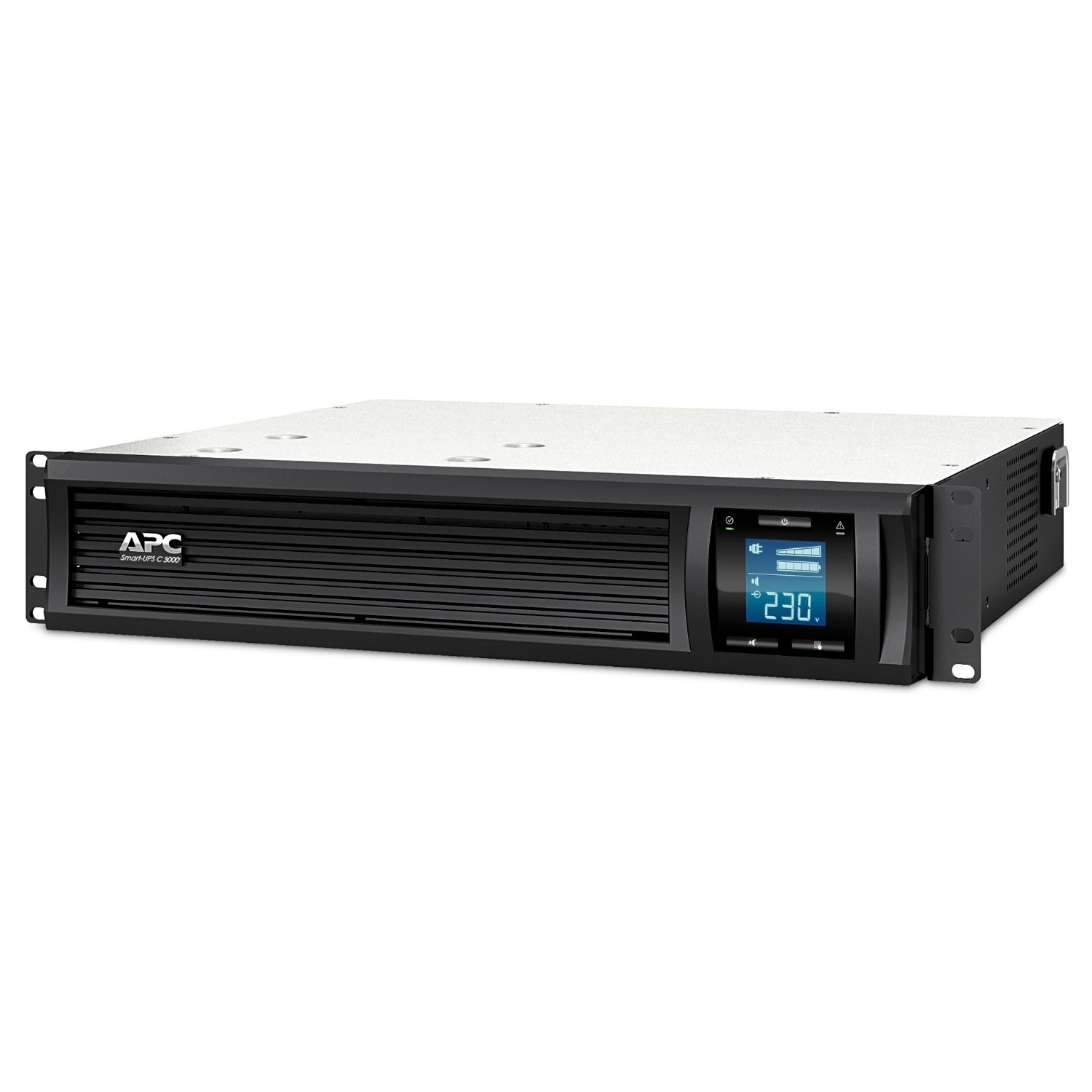

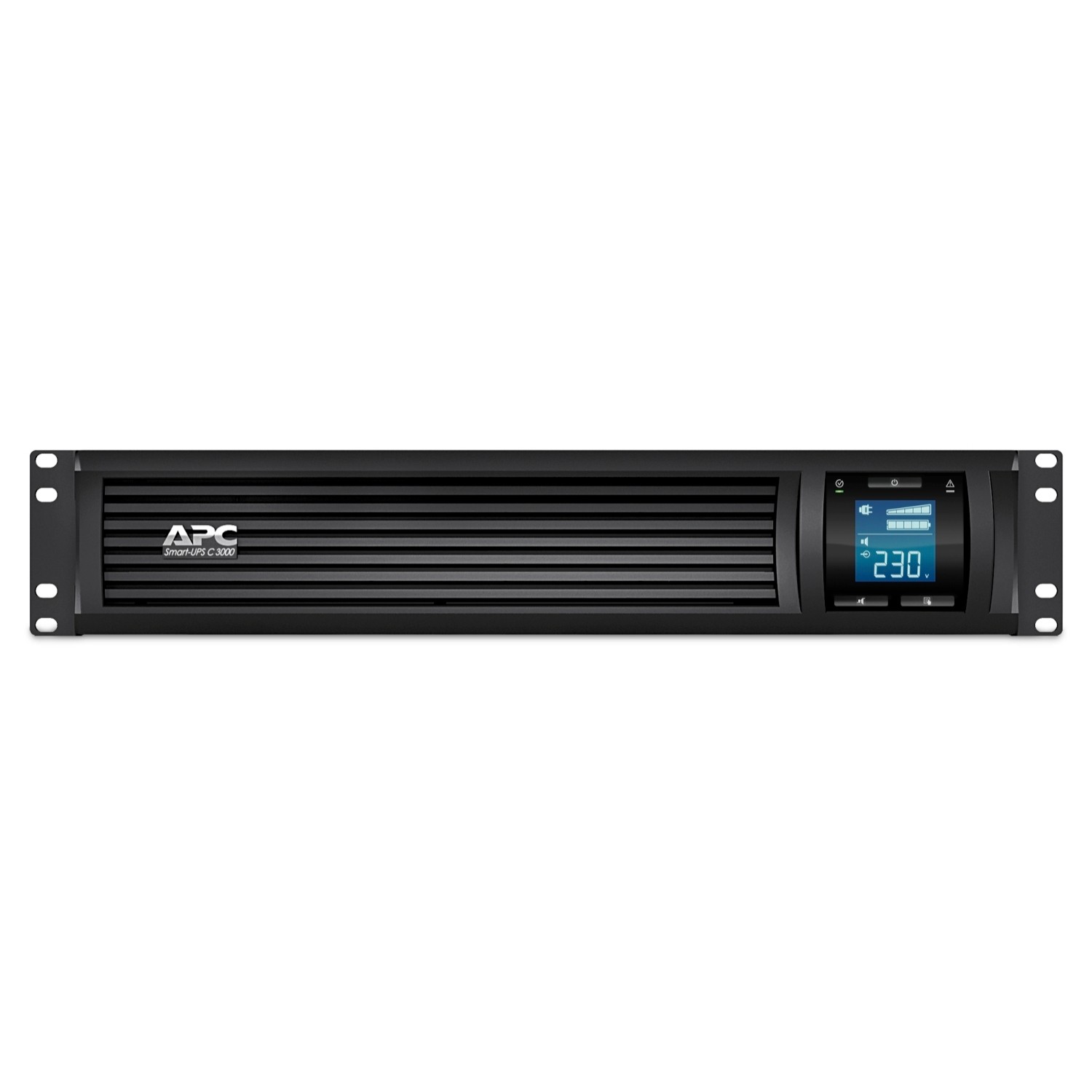

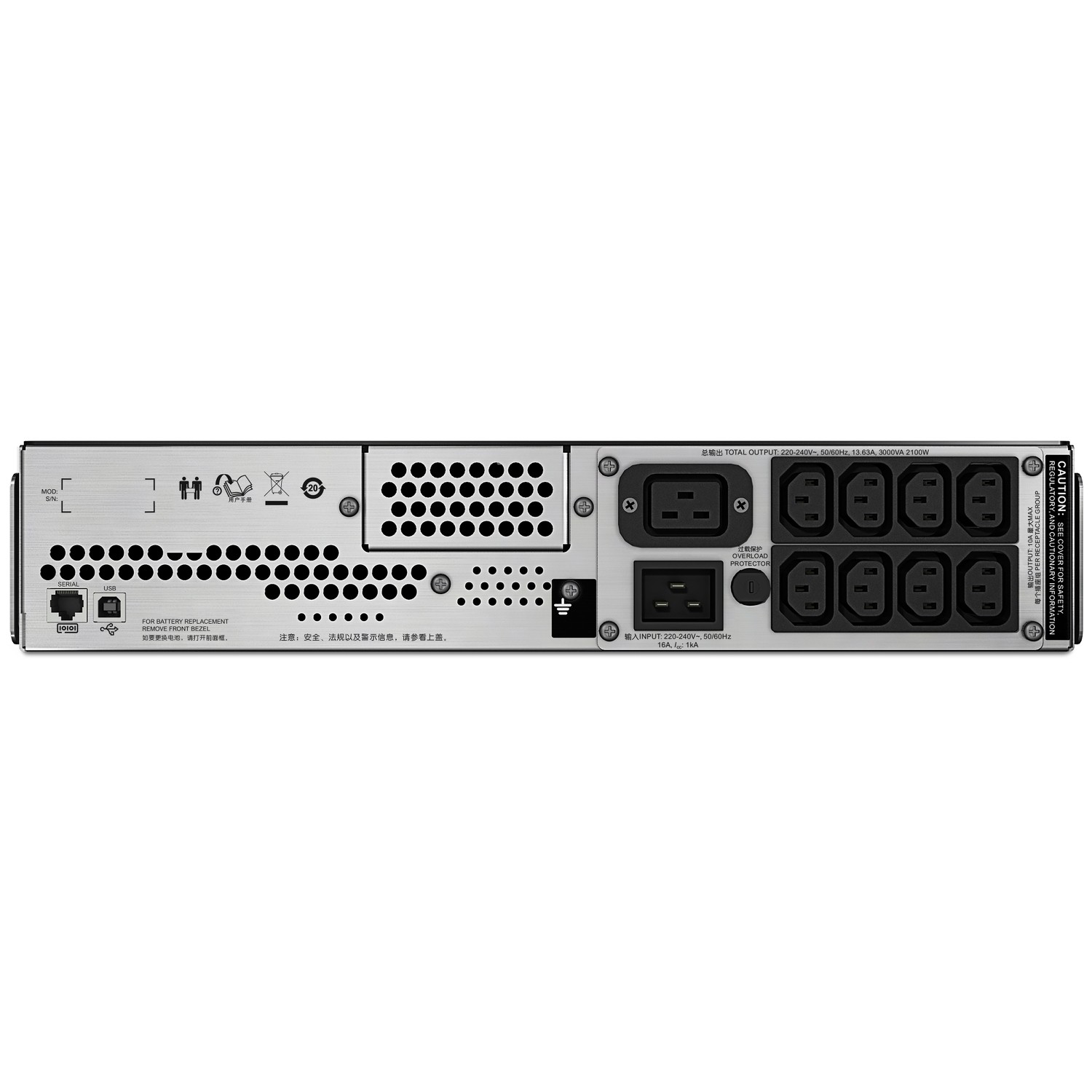

APC Smart UPS C 3000VA Rack-SMC3000RMI2U-CH
Summary:
Delivery Time: Usually within 2 weeks
Main Information:
Load Runtime: 2100 Watts (Min-Max: 210-2100 Watts) for 4 minutes 31 seconds
Maximum Capacity Used: 100%
Main Input Voltage: 230V
Other Input Voltage Options: 220V, 240V
Main Output Voltage: 230V
Rated Power [W]: 2100W
Rated Power [VA]: 3000VA
Input Connection Type: IEC 60320 C20
Output Connection Type: 8 IEC 320 C13
Rack Units: 2U
Number of Cables: 1
Battery Type: Lead-acid battery
Included Accessories: Installation Guide, Rack Mounting Brackets, USB Cable
Battery and Runtime:
Runtime View Graph, Efficiency View Graph, Auto-detectable and Expandable Delay Time: 0
Pre-installed Batteries: 0
Empty Battery Slots: 0
Typical Recharge Time: 3 hours
RBC™ Quantity: 1
Battery Lifespan: 3…5 years
Battery Power in VAH: 490 VAh runtime
Battery Charging Power (Watts): 163W rated
General:
Number of Power Module Filled Slots: 0
Number of Power Module Free Slots: 0
Product Web Sub-family: Entry level
Redundant: No
Physical Parameters:
Color: Black
Height: 8.6 cm
Width: 43.2 cm
Depth: 68.3 cm
Product Weight: 41 kg
Mounting Position: Front
Mounting Preference: Lower
Mounting Type: Rack-mounted, Two post mountable
USB Compatible: Yes
Input:
Input Voltage Limits: 180...287 V
Network Frequency: 50/60 Hz +/- 3 Hz auto-sensing
Output:
Harmonic Distortion: Less than 5% at full load
Maximum Configurable Power in VA: 3000 VA
Maximum Configurable Power in Watts: 2100 W
Transfer Time: 6 ms typical
Topology: Online interactive
Wave Type: Sine wave
Output Frequency (Sync to Mains): 50 Hz sync to mains
Compliance:
Product Certifications: CE, VDE
Environment:
Audible Noise: 42 dBA
Heat Dissipation: 81 Btu/h
Operating Altitude: 0...10000 ft
Operating Temperature: 0…40 °C
Storage Temperature: -15…45 °C
Storage Altitude: 0.00…15240.00 m
Relative Humidity: 0…95% non-condensing
Storage Relative Humidity: 0…95% non-condensing
Communication and Management:
Control Panel: Multifunction LCD status and control console
Free Slots: 0
Alarm: Alarm when on battery, distinctive low battery alarm, configurable delays
Surge Protection and Filtering:
Surge Energy Rating: 300 J
Filter: Multi-pole noise filtering, meets UL1449 standard
Packaging Unit:
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 25.4 cm
Package 1 Width: 60 cm
Package 1 Length: 98 cm
Package 1 Weight: 50.9 kg
Contractual Warranty:
Warranty Period: 2 Years
