G3HT40KHLMS-APC MGE GALAXY 300 40KVA/36KW, high-frequency three-phase UPS, with 380/400/415VAC input and output, without external batteries, with long-term standby charger (M)

G3HT40KHLMS-APC MGE GALAXY 300 40KVA/36KW, high-frequency three-phase UPS, with 380/400/415VAC input and output, without external batteries, with long-term standby charger (M)

**Summary**

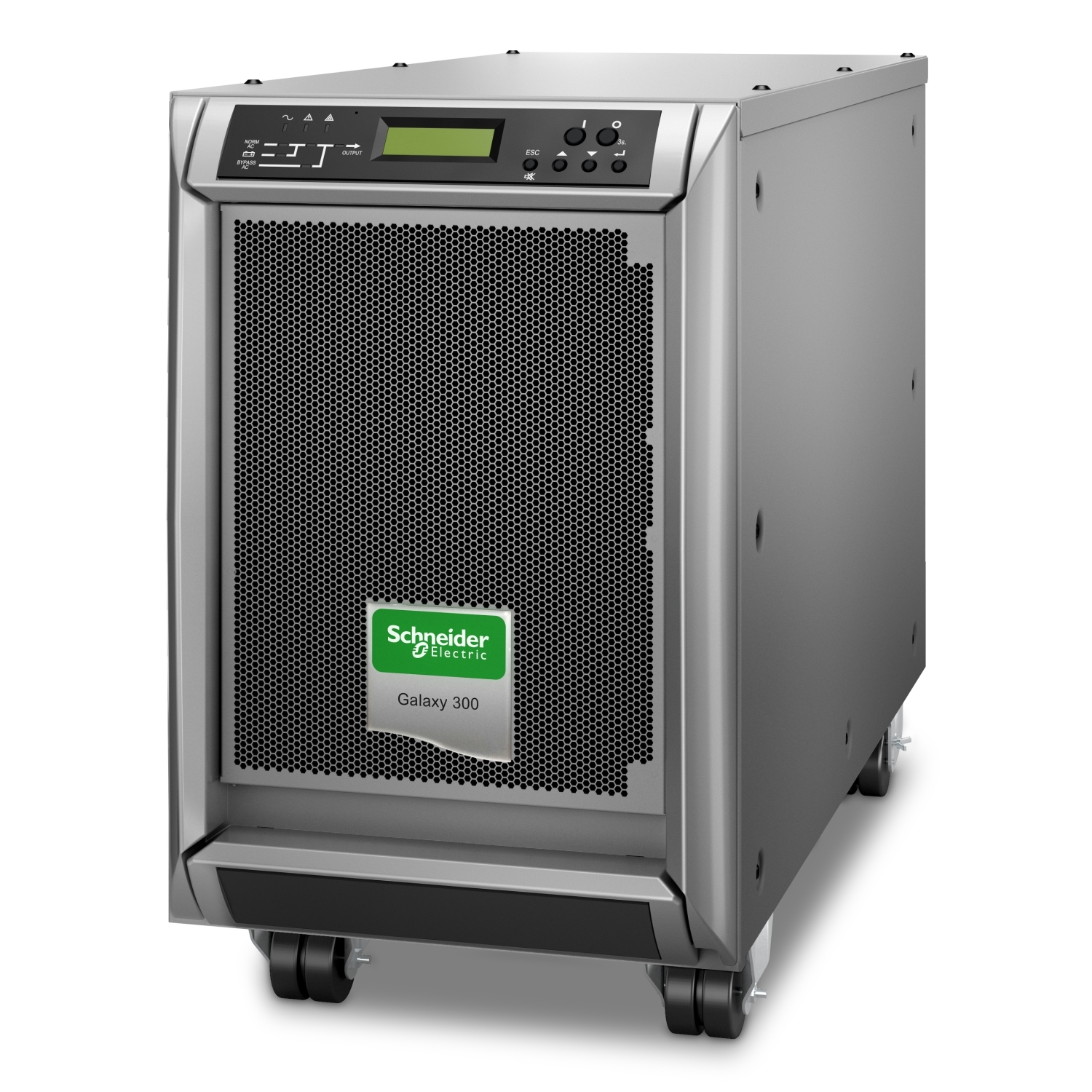

Appearance

This product provides effective three-phase power protection to prevent downtime and data loss in critical applications. The estimated runtime is based on a 70% load. Click here for additional runtime information.

Delivery Schedule

Usually delivered within 2 weeks.

Main Information

- Main Input Voltage: 400 V 3-phase

- Other Input Voltages: 380 V, 415 V

- Main Output Voltage: 400 V 3-phase

- Other Output Voltages: 380 V, 415 V

- Rated Power [W]: 32000 W

- Rated Power [VA]: 40000 VA

- Output Connector Type: Hardwire 5-wire (3PH + N + G) 1

- Battery Type: External battery system

- Included Equipment: Installation Guide, Network Management Card, Startup Service, User Manual

Battery and Runtime

- Pre-installed Batteries: 0

- Empty Battery Slots: 0

- Other Parameters: Configurable for 380, 400, or 415 V 3-phase rated output voltage

- Battery Power in VAH: 0 VAh runtime

- Automatically Detectable, Expandable Delay Time: 0

General

- Number of Power Module Free Slots: 0

- Number of Power Module Filled Slots: 0

- Redundant: No

Physical Parameters

- Height: 67 cm

- Width: 50 cm

- Depth: 95 cm

- Net Weight: 164 kg

- Mounting Preference: No preference

- USB Compatible: No

Input

- Network Frequency: 45-65 Hz

- Number of Input Connectors: 1 Hardwire 5-wire (3PH + N + G)

- Input Voltage Limit: Adjustable for 380 V: 323-437 V, 400 V: 340-460 V, 415 V: 357-477 V, 380 V: 320-456 V, 480 V: 320-480 V, 415 V: 320-498 V

- Maximum Input Current: 60 A

- Switching Current Capacity: 125 A

- Total Harmonic Distortion of Input: Less than 5% at full load

- Input Protection Type: Upstream protection provided by power source

- Surge Current: Peak 200 A

- Load Power Factor: 0.5 leading to 0.5 lagging

Output

- Maximum Configurable Power: 32000 W

- Harmonic Distortion: Less than 5%

- Output Frequency (Synchronized with Mains): 50/60 Hz +/- 5% synchronized with mains, 60 Hz +/- 0.1% asynchronous with 60 Hz nominal value, 50 Hz +/- 0.1% asynchronous with 50 Hz nominal value

- Crest Factor: 2.5:1

- Wave Type: Sine wave

- Output Voltage Tolerance: +/-2% under static load and 100% load step

- Output Voltage THD: < 3% linear load and < 5% non-linear load

- Overload Operation: 60 seconds at 120%, 30 seconds at 145%

- Required Output Current Protection: 125 A

- Bypass Type: Built-in maintenance bypass

- Maximum Configurable Power in VA: 40000 VA

Compliance

- Product Certifications: C-Tick, CE

- Standards Compliance: EN/IEC 62040-1-1, EN/IEC 62040-2

Environment

- Operating Temperature: 0-35 °C

- Relative Humidity: 0-95%

- Operating Altitude: 0-10000 ft

- Storage Environment Temperature: -10-60 °C

- Storage Relative Humidity: 0-95%

- Storage Altitude: 0.00-9144.00 m

- Sound Level: 53.6 dBA

- Heat Dissipation: 2479 Btu/h

- IP Protection Level: IP20

Communication and Management

- Idle Slots: 0

- Alert Function: Multi-functional LCD status management console

- Emergency Shutdown: Yes

Package Unit

- Unit Type of Package 1: PCE

- Number of Units in Package 1: 1

- Package 1 Height: 67.5 cm

- Package 1 Width: 95.5 cm

- Package 1 Length: 50.5 cm

- Package 1 Weight: 169 kg

Contract Warranty

- Warranty: Manufacturer-authorized start-up provides 1 year onsite warranty or replacement.
